Vaio F Series Windows 7 Clean Install Guide Using Recovery Discs - F11 - F12 - F13

Updated: 2010-10-22, 15h43

NOTE: this Windows 7 Vaio F clean install guide (some call it fresh install guide or fresh start guide) is a work in progress and was originally created for the VAIO F11 & will be updated in the following days with info pertinent to the F12. Eventually it will be split in 3: F11, F12 & F13 guides but it's basically the same process with some minor variations.

F13: It works too! xingreen reported here the differences vs. the F11 & F12 processes described below:

"...Followed the guide to do clean install and found that after the second reboot the application install screen is different from the guide for F12. It came up with installing Vaio Messenger first instead of the the audio driver. I aborted the install process with CTL-ALT-DEL and the laptop booted into a clean activated Windows install with only Vaio Messenger installed. Good enough. Had to download the drivers and the recommended Vaio application from Sony website and install them manually. After all is done, the boot up time shortened to 1 min from 1 min 45s from the factory state."

The essence of the process remains the same: Vaio Recovery installs the Windows OS first w/ the requiered Vaio F13 specific drivers & after rebooting it installs the extra software & bloatware. It's just a question of identifying when & the exact name of the rebooting program. Please take some photos of all the different screens that appears during the process & email me, I will gladly add your observations for other F13 owners' benefit or give you some tips if you fail on the first try.

If it's too complicated for you to follow, just keep your original factory install & simply uninstall the software that is not useful for you. Look in the bottom of this page for some pointers about the bloatware you can safely remove.

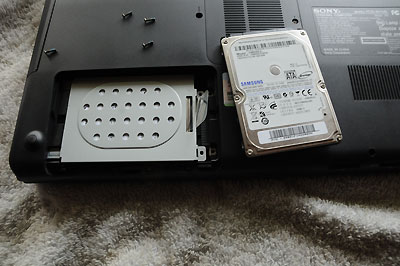

Before upgrading the hard drive in my Sony VAIO F Series US VPCF115FM laptop (500 GB 5400rpm to 500 GB 7200rpm), I created the OEM (Original Equipment Manufacturer) factory state recovery discs: > ASSIST > Vaio Care > Recovery & Restore > Create Recovery Disc (2 DVD's, more if you ordered extra software via CTO or if you have a VAIO F12 or VAIO F13 model with Office 2010 Starter and/or the Adobe bundle, etc):

More info & photos in: How to Replace the Hard Disk Drive (HDD) of a VAIO VPCF Series Laptop

It was fast & smooth to automatically create a OEM recovery partition and install the full OEM Windows 7 Home Premium 64-bit OS and all the factory installed frills on my new HDD using the recovery discs instead of using an external HDD enclosure & a cloning utility. I took photos with a cheap Point & Shoot camera (P&S) of all the different windows showing up during the recovery process & noticed the line separating the OS installation itself from the rest of the optional programs. After searching a bit, I found this old 2007 thread: How to Optimize Any Sony VAIO With a Semi-Clean Install. While not specific to the VAIO F Series, the idea was the same: stop the full factory state recovery process after the Windows 7 OS is installed and before the rest of the software & trialware is installed. As the benchmarks illustrates below, it's a superfast & clean install, not a "semi-clean" install as the title of that old thread suggest. In fact, it's cleaner than when using a generic Windows 7 OS on a VAIO F Series laptop.

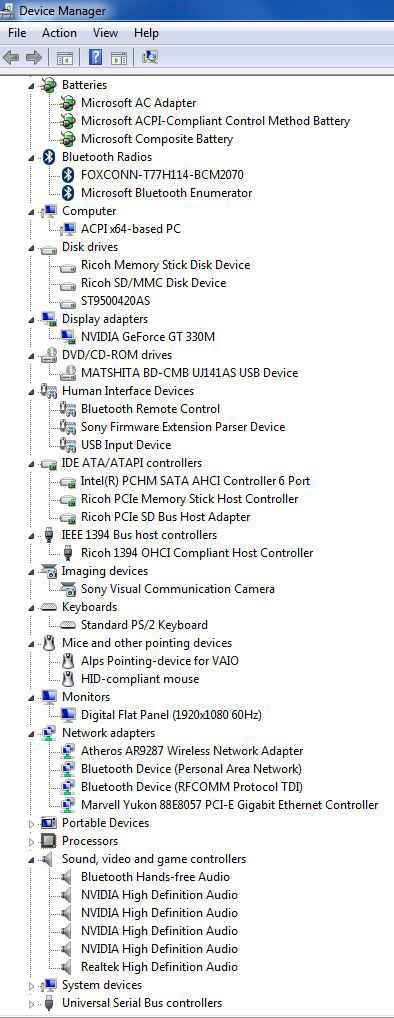

The advantage of this method is that in Windows 7 Device Manager, you won't get all the "unknown device" that ilfuca listed in his Win 7 fresh install guide for Vaio F series made with a generic off-the-shelf Windows 7 OS disc. Check also the Sony Support Clean Install Instructions for Windows 7 to see the Unknown devices examples. You don't have to do ilfuca's time consuming sonyextractor trick to extract the .mod files if you download the Vaio Software listed below in the red box from your  model specific Sony esupport page and use your recovery discs.

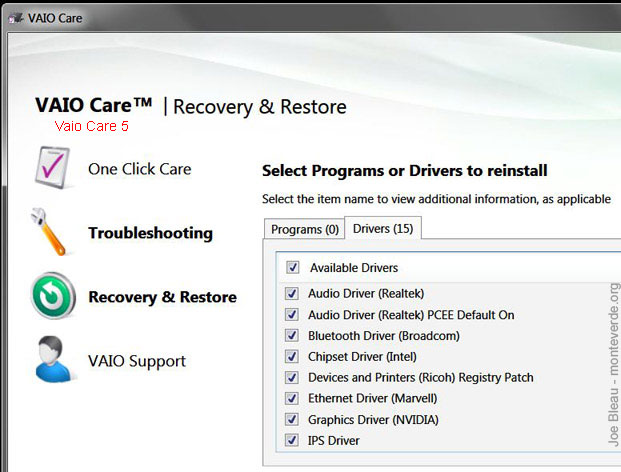

All the drivers but NOT any additional software besides the clean Windows 7 OS seen in  > ASSIST > Vaio Care > Recovery & Restore > Install Drivers tab are automatically & fully installed when doing a Windows 7 clean install using this recovery discs method as well as the Intel Chipset Driver, the Intel PCHM SATA AHCI Controller 6 Port Driver and the Sony Firmware Extension Parser Device Driver and all the Ricoh drivers, etc.

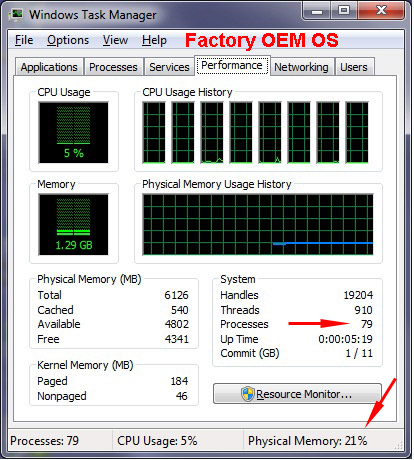

So after using the VAIO F11 a while & trying all the programs & checking how much resources they were using & their usefulness for my needs, I decided to try a clean install with the recovery discs and a normal wired mouse.

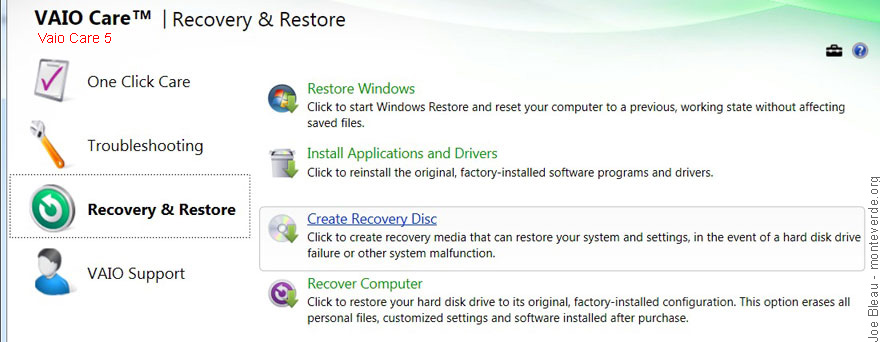

Note that if you are installing on the OEM drive and want to keep the OEM recovery partition, you can use that partition to do the clean install described here w/o using the recovery discs by hitting F10 when booting or if the F is turned off: by simply hitting the ASSIST key. That's what tausif did as he posted here.

If you want the following then you need the recovery discs:

1- Clean install w/ formatting the OEM drive to eliminate the recovery partition

2- Clean install w/ formatting a brand new drive w/ or w/o that recovery partition

How To Do a Clean Install with the VAIO F Series Recovery Discs

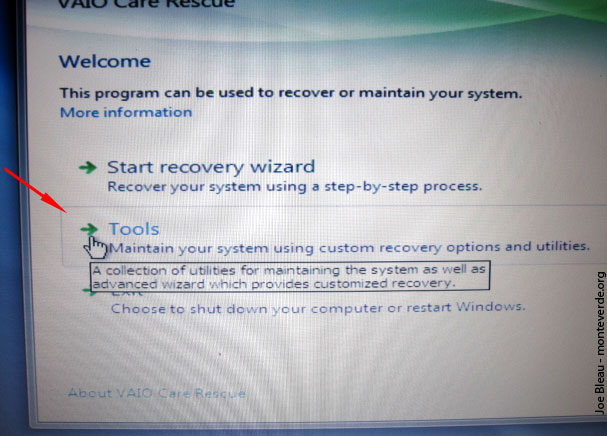

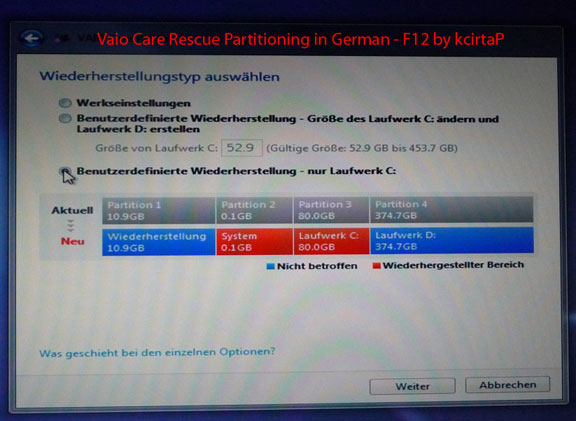

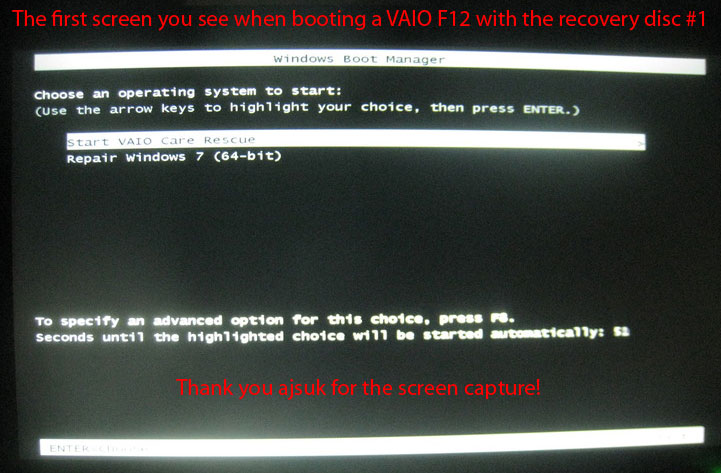

This is for the Sony Vaio F11, there are notes & a red box below about specifics for the F12 but the idea is the same with only small variations. That also applies to the Vaio F13. You can do it for the C: Drive only, full drive format, from recovery discs or from the OEM recovery partition, it's all the same idea.

Insert recovery disc #1 & reboot, when the VAIO logo appears, quickly press F2 to access the VAIO VPCF BIOS menu > Boot Priority > 1st  Boot Priority > Internal Optical Disc Drive then save & exit to reboot to the recovery DVD #1. The default VAIO F Series BIOS setting is 1st Internal Optical Disc Drive but I added this step just in case that your BIOS were customized, it's a short & easy step to run that check. After all was done, I set my boot order to Internal Hard Disk Drive first to have quicker booting time as the F will not waste time looking for media in the Optical drive nor look for an external device. This is a personal speed optimization preference.

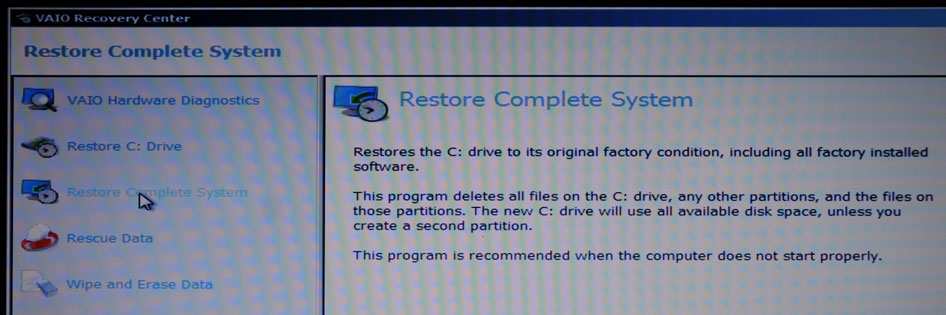

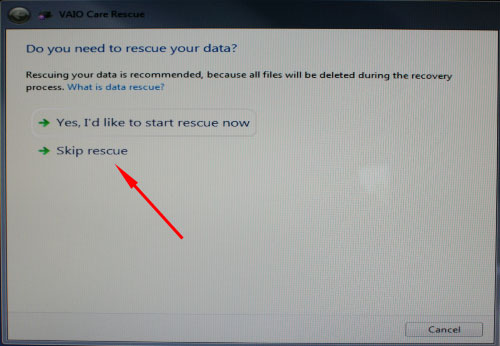

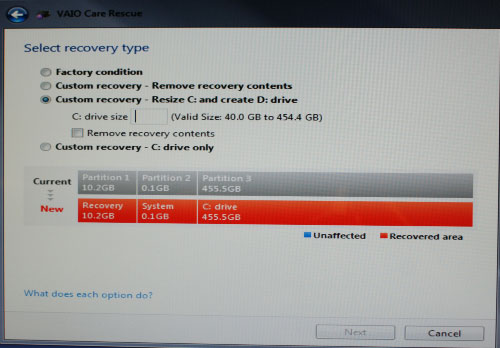

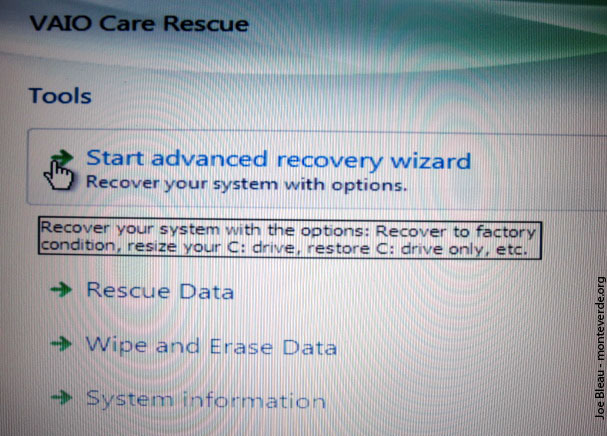

When booting from the recovery disc #1  and selecting the Restore Complete System (called Vaio Care Rescue > Tools in the F12), there are some interesting options:

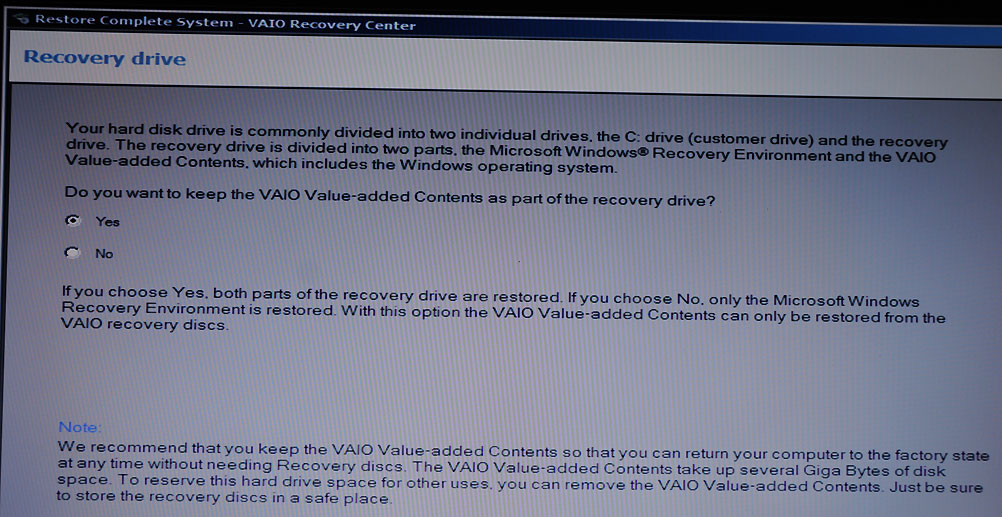

1- Option to keep or not the Value-added content to create a full factory state recovery partition - I kept it because it's only 8.66 GB out of the 465 GB HDD capacity and the Windows 7 OS will be included in the recovery partition. If you do not keep the Value-added content then only the Windows Recovery Environment will be saved in the smaller recovery partition BUT NOT the full Windows 7 OS nor all the extra software like WinDVD, Roxio, Vaio PMB, etc. F12: Office 2010 Starter, Adobe Bundle (If your Vaio F Series was bought from SonyStyle) and those are NOT available for public download on Sony esupport so don't loose those recovery discs if you make that choice!

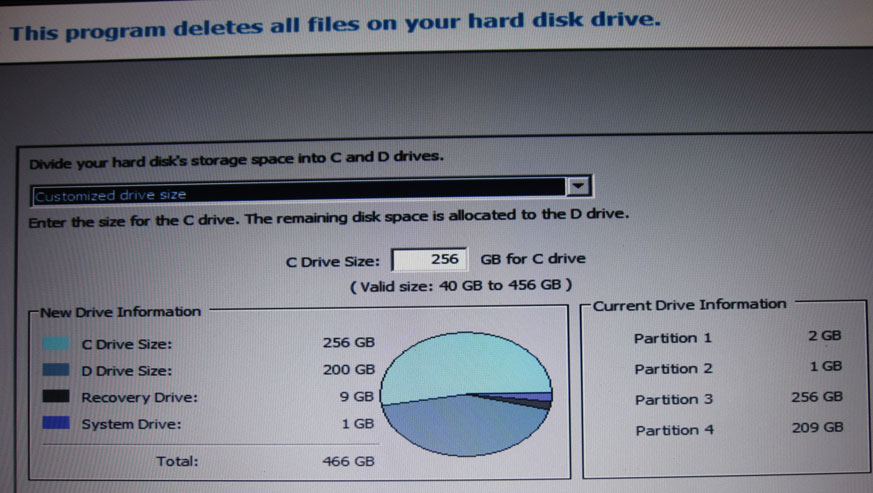

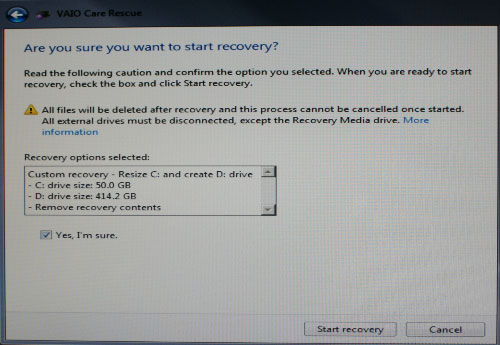

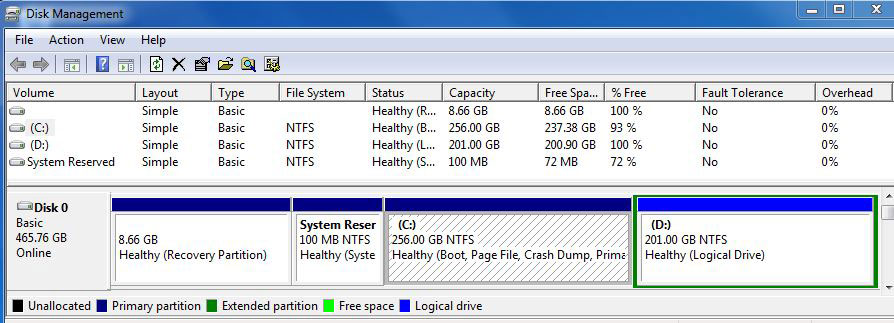

2 - Option to partition the drive, which I did: 256 GB for C & the rest for D: 201 GB (for backup, defrag & speed reasons and in case I want to migrate to a 256 GB SSD when the price goes down a bit. More info why in an eventual update). You can always delete the D partition anytime & enlarge (or shrink) C: with the freed space using Disk Management included in Windows 7. You don't have to create partitions & can choose to use the entire drive's capacity for C.

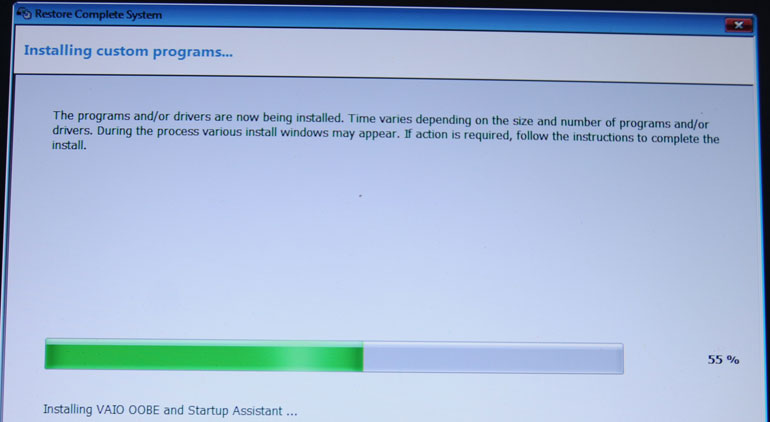

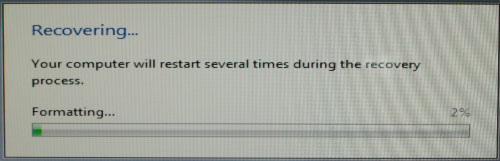

After a while, it will ask for disc #2 and so forth until your last recovery disc, then tells you to remove it, and the laptop will now reboot in Windows 7 (thanks djmafia for the feedback & observation posted here)  and under Installing custom programs it installs Audio Driver Realtek, Pointing Driver Alps, Installing Restart Driver [abort Restore Complete System application with Task Manager! (called "Vaio care rescue" on the F12*)] The trick is to quickly start Task Manager when you see Audio Driver Realtek by hitting Ctrl + Alt + Delete, highlighting the Restore Complete System (or F12: Vaio care rescue) application & get ready to kill it (End Task) when Installing Restart Driver appears. The system will reboot & may tell you that the process did not complete properly, disregard that. I just rebooted & it went away.

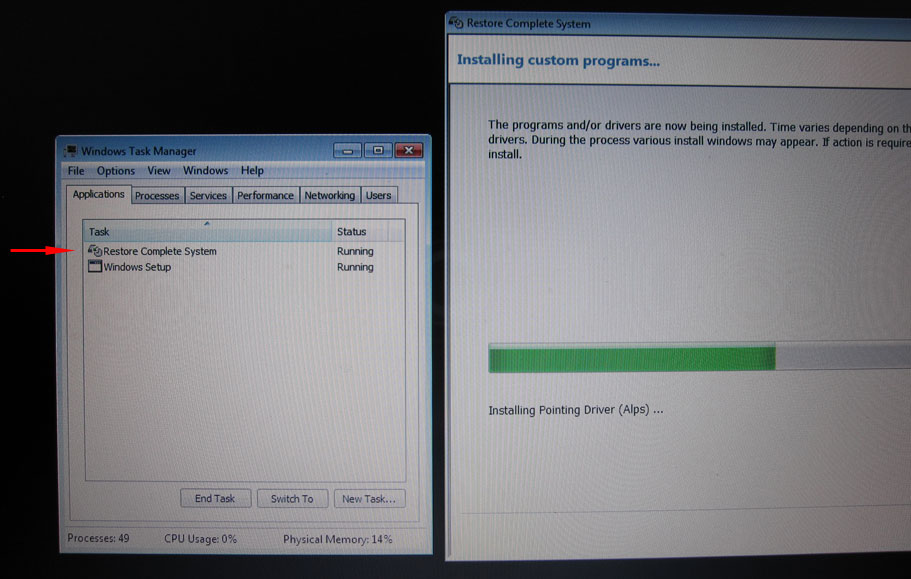

You now have a Windows 7 clean install customized for the VAIO F Series. You have to be sharp & ready to abort otherwise you have to do over the entire process again, about 35 minutes. The only glitch for me was that after everything was completed, including the steps below, is that I had to disable & enable again the touchpad to get it to work in S1 > Vaio Control Center > Keyboard & Mouse > Pointing Device. I presume it comes from the fact that the Alps driver is one of the last thing installed before the abortion. That's where the corded mouse comes handy if you are not good at navigating the OS with Tab + the arrows. Worst case scenario: uninstall/reinstall the Alps driver found on Sony Support or by using Vaio Care as described below.

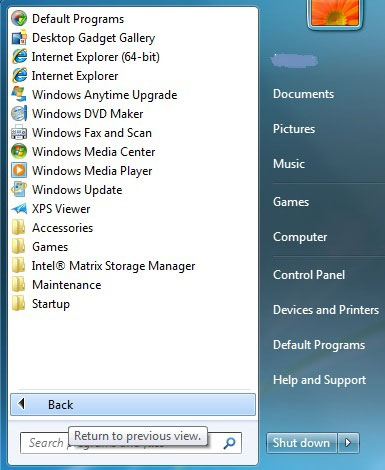

What you get after reboot is this clean install, already activated w/o the need to enter a product key & with all the necessary specific drivers for your VAIO F Series and w/o ANY unknown devices in Device Manager contrary to a clean install done with a generic Windows 7 retail OS disc.

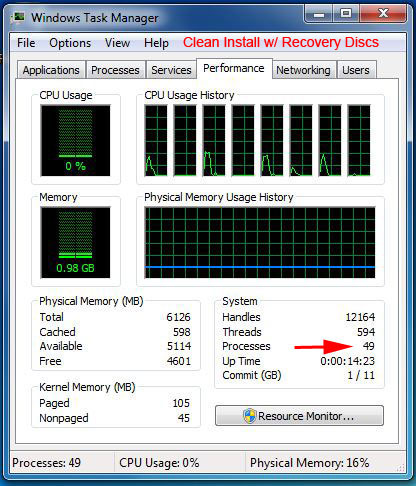

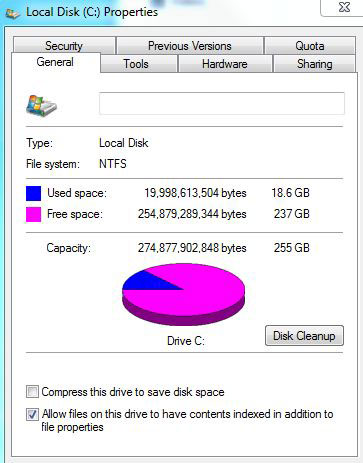

Note that the total occupied space on the HDD C: is only 18.6 GB in my case. First boot with the full factory OEM OS was 1:11 compared with 0:48 sec. with this OEM clean install, both on my upgraded Seagate 7200rpm HDD.

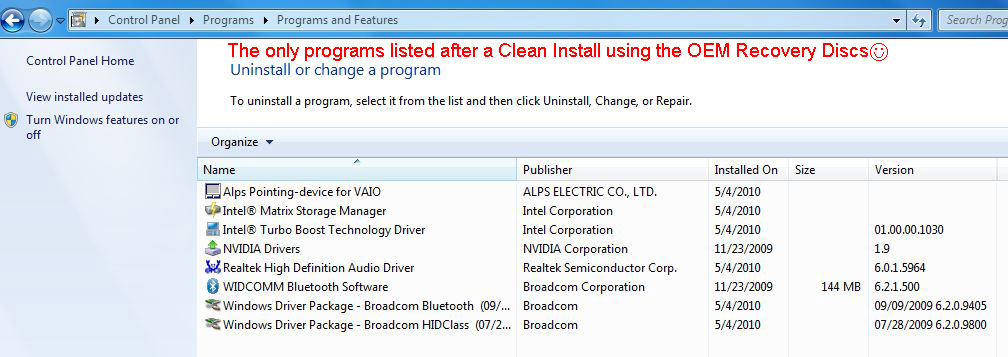

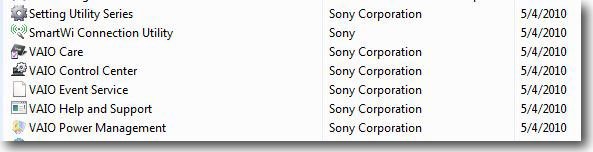

This is the only VAIO software shown in Control Panel > Programs & all my special keys & functions are working properly:

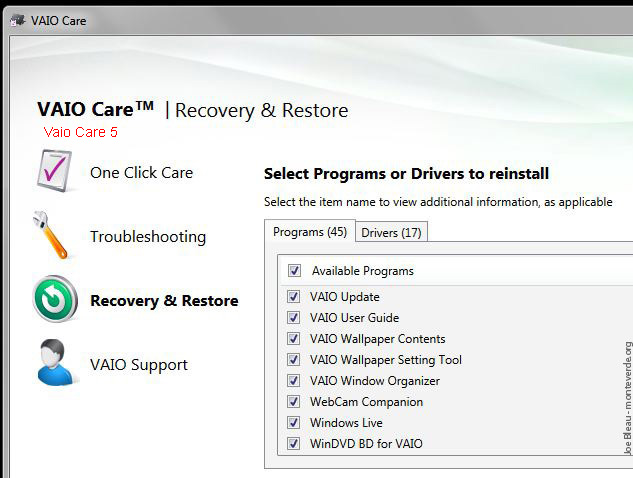

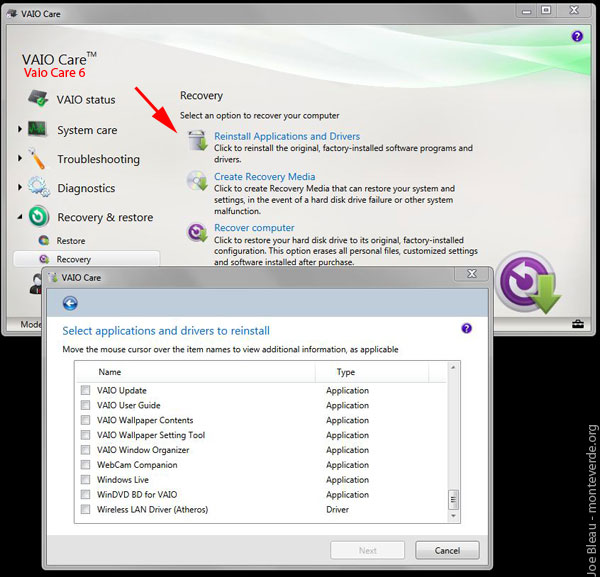

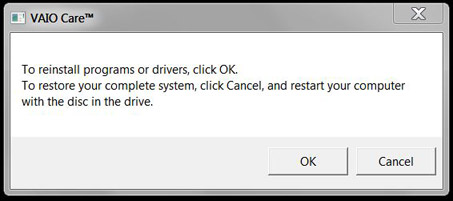

To install what you want from the list of software (WinDVD, Roxio, Adobe bundle (if bought from SonyStyle only), Sony's PMB, etc., those added value software are NOT available for download on esupport) & Vaio extra software listed with comments below, just insert recovery disc 1. After that, you can use the disc to install more programs or eject the disk and install with  > ASSIST > Vaio Care > Recovery & Restore > Install Applications & Drivers.

1- Connect to the web & run Windows Update to download a ton of patches for Window 7 that will need several reboot.

2- After updating Windows: Start > search & run: Disk Cleanup & Disk Defragmenter.

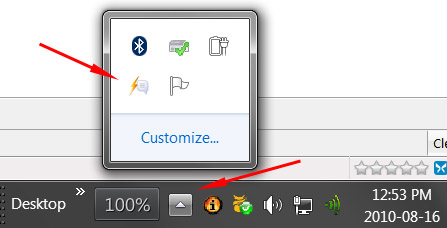

3- Click on the Vaio Update icon near the clock or go to  > ASSIST > Vaio Care > VAIO Support > eSupport & download the most recent updates for your machine.  Note: don't download updates for bloatware that you chose not to install by using this guide! See my preferred setting to manual for Vaio Update below.

4- Check the Vaio F Series Owner's thread for links to updates not on eSupport like Nvidia's latest video driver for example which is faster & more efficient in games but also in Photoshop (check zooming & panning demo videos here), Adobe Lightroom, etc. I am using NVIDIA 258.96 @ the present & it's working fine with much better benchmarks than the OEM driver found on esupport.

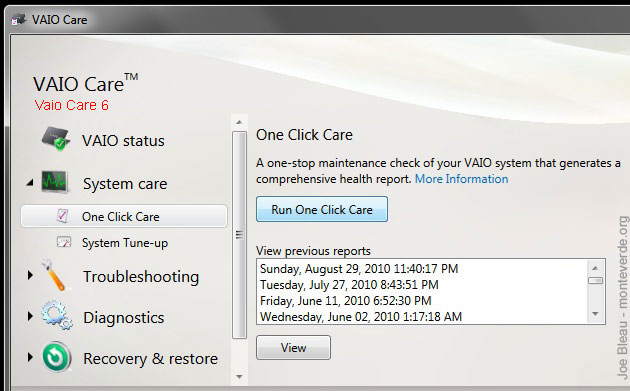

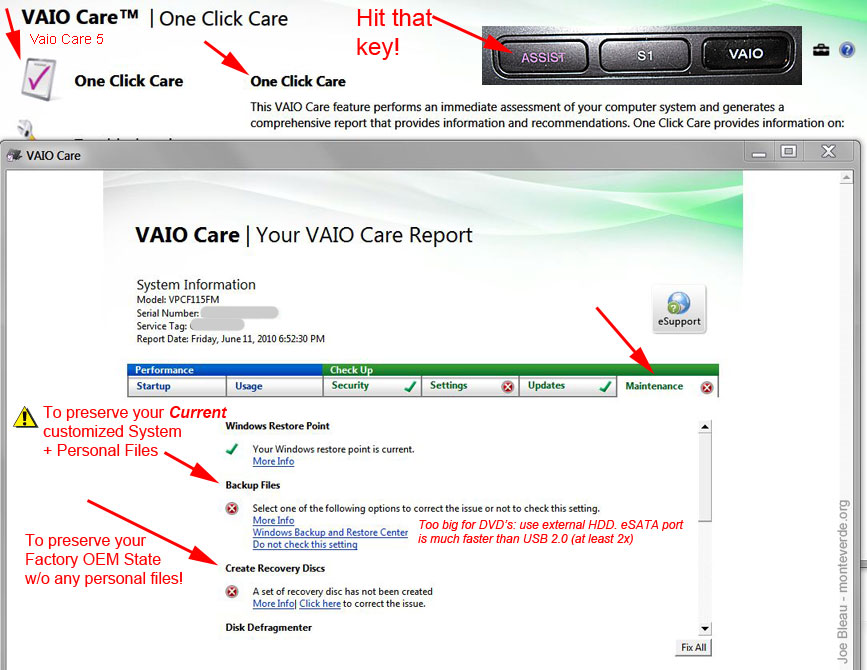

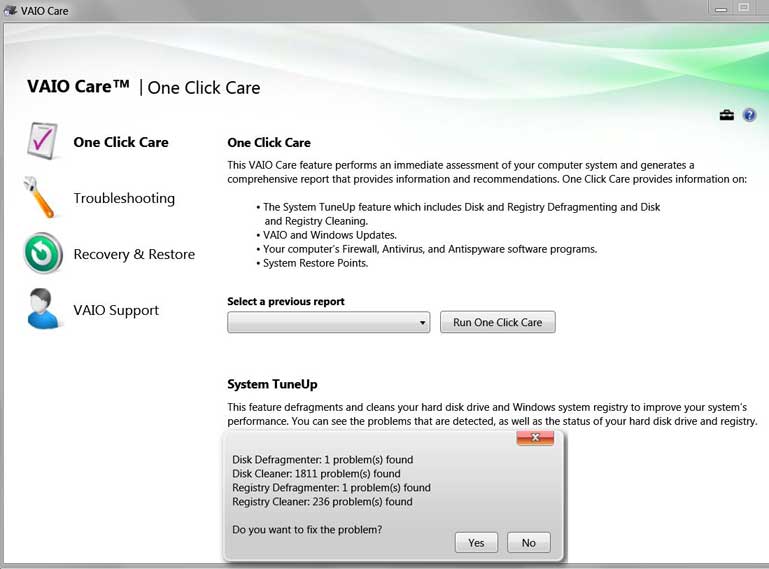

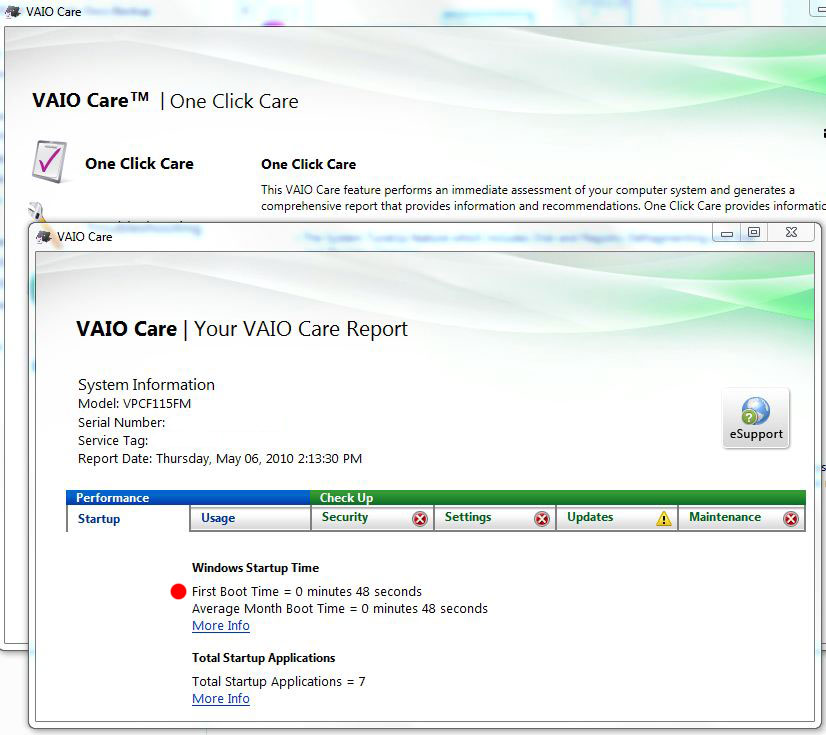

5- I strongly suggest running Vaio Care > One Click Care to see a complete picture of what you have to do on your system & clean & defrag the registry, etc.

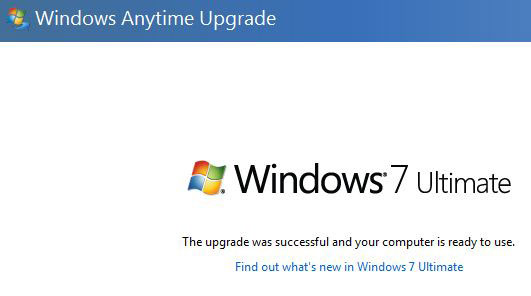

- After all that, I entered my Windows 7 Ultimate key in > Start > Anytime Upgrade to unlock the features already contained in the Home Premium OEM OS & voila, it was now an Ultimate OS in less than 5 minutes. The only reason I needed Ultimate is the language packs for the OS representation (Spanish & German in my case). The Ultimate or Professional versions are not any faster nor more efficient than the Home version. They only have a few extra features. Check this article for more details: Windows 7 editions.

Note: you can use this OEM clean install method & then use your full OS Pro or Ultimate key & then you have to call Microsoft to activate it. It's faster than starting from scratch with a Generic Pro or a Generic Ultimate & then have to install all the missing drivers & patches IMO.

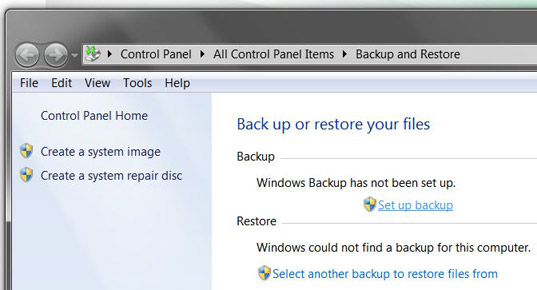

You can preserve that clean install you just did by creating a full system image clicking on the Backup Files seen in the Vaio Care report shown above or by pasting this in Explorer: Control Panel\All Control Panel Items\Backup and Restore. You could also install your most important favorite programs, update them & then create said system image. If one day you have major problems, you could use that image to restore your computer instead of using the OEM recovery discs or partition & redo the entire process again! Creating a full system image every week or so on an external eSATA drive is computer safety 101 as if your hard drive dyes for example, you will loose only 1 week of work/modifications/updates at most. Naturally if you do critical work, daily backups is recommended. If your external drive is connected via USB 2.0, it will take forever as your data accumulates.

These are screen captures done after the custom OEM recovery discs clean install was completed

Vaio OOBE & Startup Assistant (Bloatware, also known as VAIO Out Of Box Experience and Welcome Center. You saw already the Thank you for buying a Sony... thing the first time you booted in the OEM state. Keep it if you want to see it again. :-)

Adobe Flash Player (out-dated version). It's better to get the more recent version manually on adobe.com

Adobe Flash Player plugin (out-dated version). It's better to get the more recent version manually on adobe.com

Adobe Reader (out-dated version). It's better to get the more recent version manually on adobe.com IF you don't have Acrobat Pro

??? CSUP, TXT Creator (MOD-CSUP.mod found in recovery disc #2)

??? Factory Update (MOD-Factory_Update.mod found in recovery disc #2)

Google IE Setting (Bloatware IMO) An other beacon for the Google mother ship. Have you seen V the US TV series or read Orwell's 1984?

Google Chrome (Bloatware IMO) better to get the latest version manually if you want even more Google in your life reporting your surfing habits to the mother ship. I prefer Firefox because they don't sell anything.

Java Runtime Environment (out-dated version). It's better to get the more recent version + the plugins for your browsers manually on www.java.com

Microsoft Works SE 9.0 (Bloatware IMO) IF you use an other office program like the free, lean & fast Open Office for example.

Office 2007 Home Trial (Bloatware IMO)

Office 2007 Activation assistant (Bloatware related to the trial)

Edit: For the F12: Microsoft Office Starter 2010. It only includes Word & Excel but it's fully activated, not a trial. It's useful if you don't have an other office utility suite.

Norton 2010 Trial - lean & efficient IMO after tweaking the settings, I found a 3 years for 3 computers key on Fleabay for $15. - useful for me, bloatware for you if you use an other security suite.

Office 2007 Word patch (Bloatware related to the trial)

??? PC Boot Optimization: I dunno what this does exactly but it needs to be extracted from the recovery disc #2 (MOD-PC_Boot_Optimization.mod) with SonyExtractor_v0.1a.zip if you want to install it as a .exe which I did as well as the Play to Registry Patch found in the recovery disc #1 (MOD-Play_To_Registry_Patch.mod) described below. I compressed the exe's already extracted with WinRAR and posted them here for your convenience (save link as): Boot_Optimization _and_Play_To_Registry.rar More details in a couple of days (maybe). My guess is that it's only a run once thing to optimize the boot order after the installation is completed as it's not listed in my programs as you can see below: Control Panel\All Control Panel Items\Programs and Features.

??? Play to Registry Patch (MOD-Play_To_Registry_Patch.EXE): my guess is that it's the Realtek Audio Driver PCEE Registry Patch found on esupport. Meanwhile you can download it above or better from your model specific esupport page.

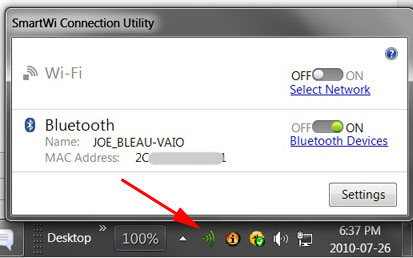

SmartWI Connection Utility - useful but not essential as it installs a convenient shortcut icon on the taskbar near the clock where you can quickly enable or disable Bluetooth and/or Wi-Fi.

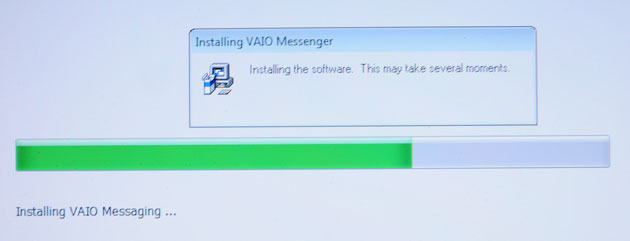

??? Vaio Messaging or Messenger? (MOD-VAIO_Messenger.mod found in recovery disc #2): what does this do exactly? I did not have time to sift through all the messy search results: vaio messaging software or vaio messenger software. The fact that Sony sells a VAIO Messenger branded notebook case does not help the search results. :-( I think that it's related to the VAIO 5 automatic update features. I did not install it & my F works fine.

Vaio Survey Standalone: Bloatware IMO: Do you like your Vaio? Well it's my first boot, how can I say if I would recommend it or not? Duh!

Warranty Registration Standalone: Bloatware IMO. Do it on OEM state before clean install or after:  > ASSIST > Vaio Care > Vaio Support > Register. You don't need a special program to hold your hand. If you register, you get the international warranty in most countries.

WinDVD BD for Vaio - useful if you don't have an other software to play Blu-ray discs.

Magic-i Visual Effects - mildly useful to play w/ webcam, my 8 years old daughter loves it.

Sony Media Gallery: Big Bloatware IMO, duplicates Windows Media Center features & scans your drives & your network. Compare them with your laptop in the OEM state before the clean install to see if it's useful to you.

Media Go Web Link Icon: Bloatware IMO, wants to sell you stuff.

PMB Vaio Edition (Picture Motion Browser): Bloatware IMO, may be useful if you have a Sony imaging device but costly in resources & scanning activity & installs several related "utilities").

PMB Vaio Edition Guide (Bloatware IMO)

PMB Vaio Edition plug-in (Vaio Image Optimizer) (Bloatware IMO)

PMB Vaio Edition plug-in (Vaio Movie Story) (Bloatware IMO)

Roxio Easy Media Creator 10 LJ: bloatware if you use something else to burn discs, limited functions, you need to register on Roxio & there is a program running constantly in the background calling the mother ship to check if the software is legit & registered. Besides I found hundreds of errors in my Windows 7 Event Viewer: Roxio Upnp Server 10, Event ID: 7009. See my post in the official Roxio message board: Easy Media Creator 10 Multiple Roxio Upnp Server Timeout Errors, Windows 7 System Event: Event ID: 7009, Roxio Upnp Server 10 Timeout.

??? Set Numlock On. It's just a default setting, you can do it manually with the Num Lk key on the keypad if needed.

Vaio Care - Very useful to troubleshoot, do system maintenance including Registry defrag & other valuable system optimization tasks like System TuneUp for example.

Vaio Content Metadata Intelligent Analyzing Manager (Bloatware IMO, scans your drives & your network)

Vaio Content Metadata Intelligent Network Service Manager (Bloatware IMO, scans your drives & your network)

Vaio Entertainment Platform (Bloatware IMO)

Vaio Content Metadata XML Interface (PMB related Bloatware IMO)

Vaio Content Monitoring Settings (Bloatware IMO, scans your drives & your network)

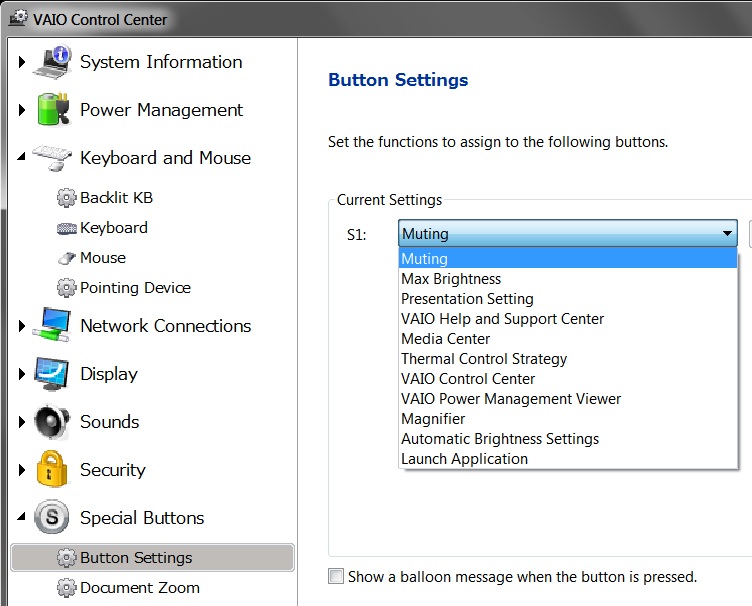

Vaio Control Center - Very useful!

Vaio Color Setting - It's related to color profile modifications depending on if you are viewing DVD's or other stuff as seen in S1 > Vaio Control Center > Display > Color Mode Setting. I don't use that so I did not install it because it may override your custom color profile or Nvidia color tweaking as mention in this Sony support article.

Vaio DVD Menu Data (Bloatware IMO, works only with PMB)

Vaio Data Restore Tool - useful

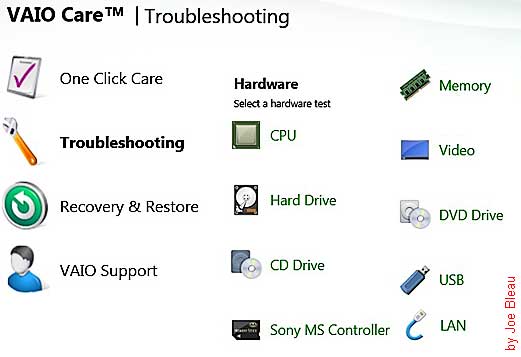

Vaio Hardware Diagnostics - Very useful!!!

Vaio Media Plus (Bloatware IMO)

Vaio Media Plus Opening Movie (Bloatware movie demo)

Vaio Original Function Settings (Bloatware related to Vaio Media Plus)

Vaio Peripherals Metadata - Useful, eye candy for Device & Printers

Vaio Personalization Manager (Bloatware related to Vaio Media Plus)

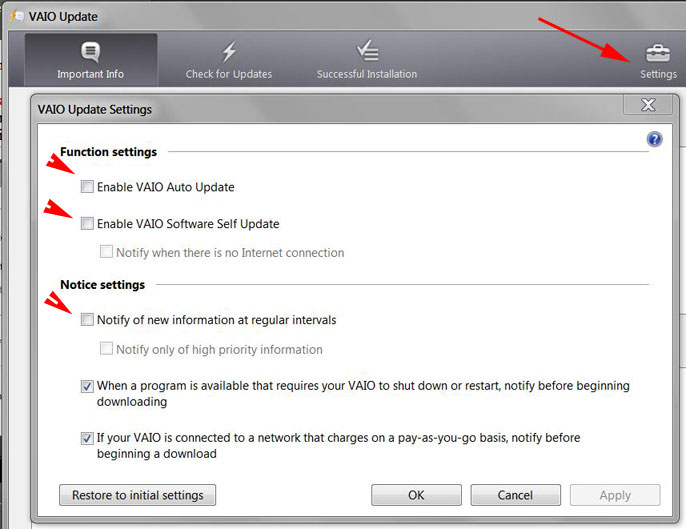

Vaio Update 5 (Bloatware IMO) misses some stuff besides always running in the background. I prefer to update manually by going to eSupport for my F model about once a month. Update: I finally installed the latest version found on Sony's esupport but went in the Settings tab to disable all the automatic calling home & auto install functions. I simply click on it's icon in the taskbar near the clock to manually check once a month so it's not constantly calling home & using resources in the background.

??? Vaio Wallpaper Setting Tool - does it add anything to Windows 7 Personalization? The VAIO themes are pretty bland IMO. I use a solid black background & disabled transparency on the taskbars to save video resources & make my F snappier.

Arcsoft Webcam Companion 3 - Useful but limited functions IMO

Windows Live (Bloatware IMO)

Windows Live Messenger Fix (Bloatware IMO)

??? SCR: a screen saver?

Sony Pictures BD Live Demo Video (advertising video Bloatware)

Best Buy Software Installer (Super Bloatware that wants to sell you stuff all the time)

Desktop Shortcut Cleaner (Bloatware IMO, if you don't know how to clean your desktop yourself the you don't need a F Series anyway. :-)

??? Services Status Update (MOD-Services_Status_Update.mod found in recovery disc #2).

Vaio Help and support - Useful especially to troubleshoot your machine if you don't have access to the web, includes links to warranty registration & the specific esupport page for your F.

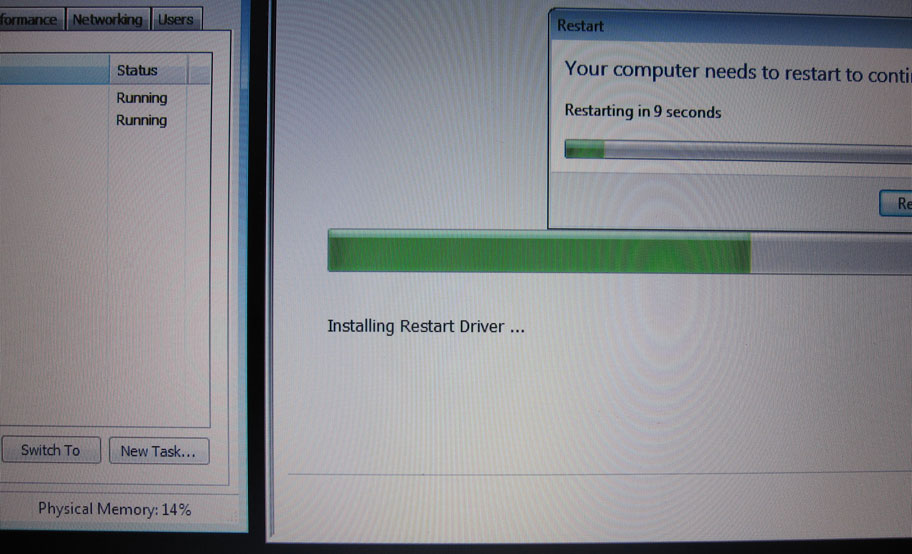

>>>>>>>>>>>>>>>>>>>>>>>>>>> Restart

Cleanup phase Sysprep plugins...

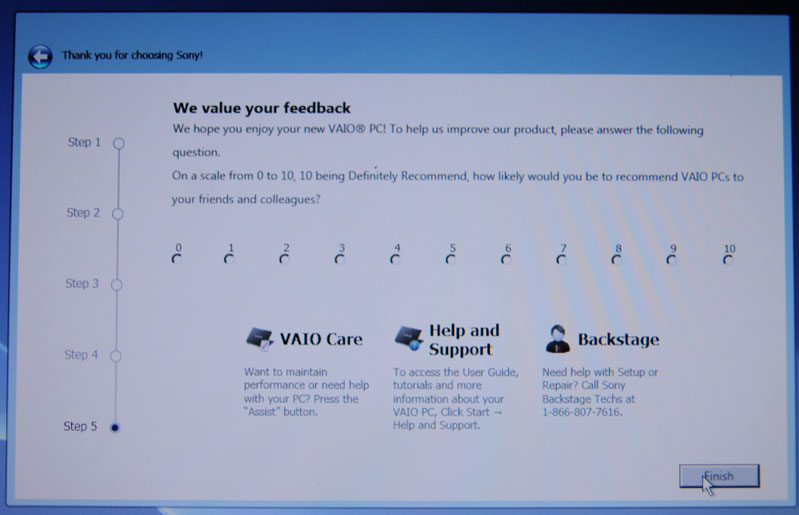

Thank You for Choosing Sony... We value your feedback!

***************************************************************

Comments about each of the above will be added in the next days.

----------------------------------------------------------------------------------------

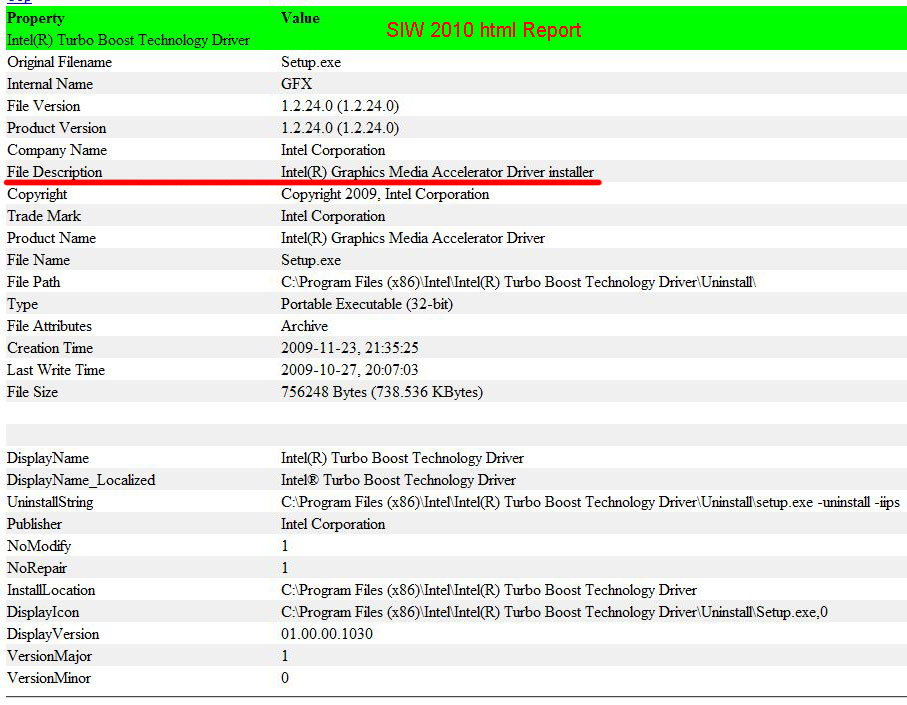

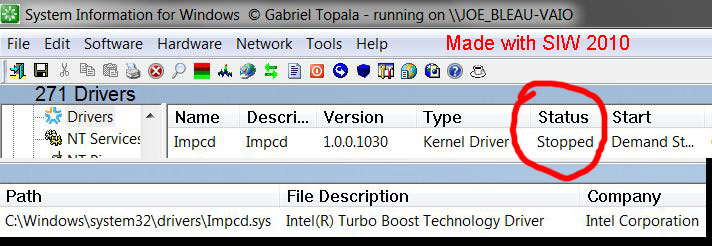

Note that the Intel Turbo Boost Technology Driver is useless for the F Series as it is only running on system that have discreet onboard Intel video that the F Series does not have as it is using the dedicated NVIDIA video card. I confirmed this by checking with SIW 2010 in Processes, it's turned off: Status: Stopped. As you can see below, the full name of the installer is: Intel Graphics Media  Accelerator. The Intel CPU Turbo Boost feature is in the CPU itself, there is no need to install any programs or drivers to make it work. Intel gave it a stupid incomplete name & Sony did not remove it from it's F OS installer as the VAIO Z model, for example, do have a discreet video switch to save power. The real Turbo Boost feature is embedded in the CPU itself & does not need any extra driver. It's not OS dependant.

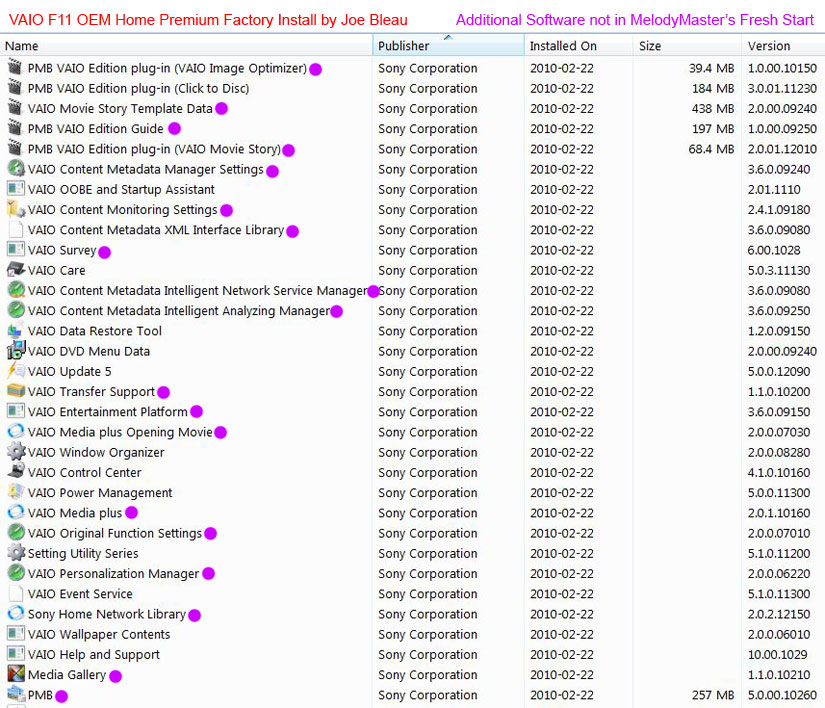

Compare the above with all the Vaio stuff that was on my preconfigured F11 Home Premium out of the box:

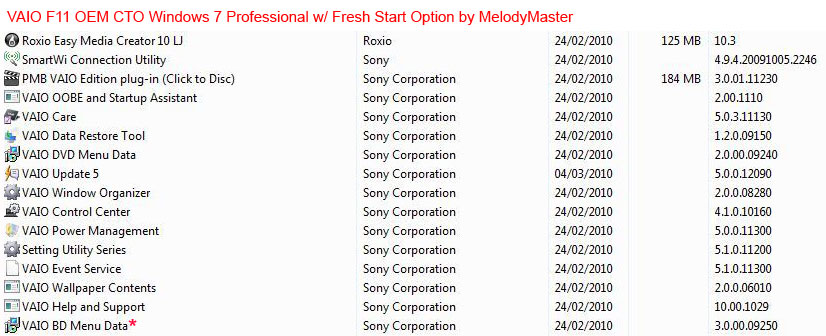

Compared to MelodyMaster's CTO with the "Fresh Start" option that cost him $50 but also included the Professional OS version upgrade (thanks MelodyMaster for the screen capture, that made me want to try the clean install!):

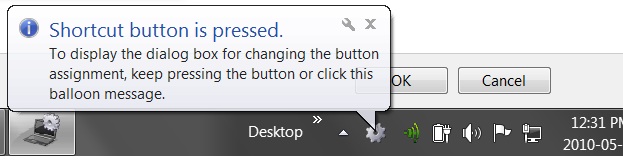

There are several Windows 7 annoyances that are easy to fix, list to be posted in a couple of days & includes things like a stupid balloon that tells me that I just pressed a key. Duh!

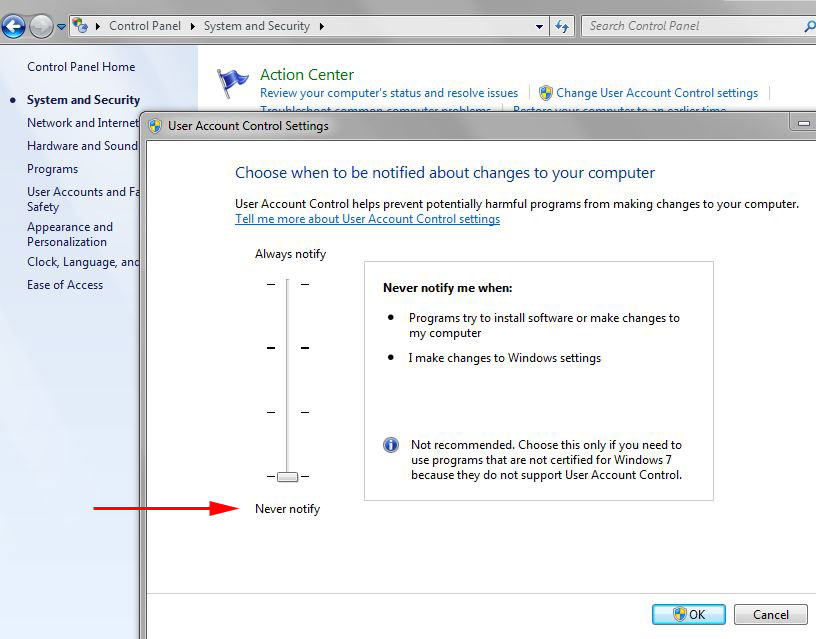

Or Windows constantly asking me if I really want to install programs or do something. The fix: set UAC to Never notify!

Bragging time: I ran the free 30 days evaluation version of Passmark Performance Test 7.0 (thanks for the pointer Willscary) & posted my results in their online database & guess who is listed in the top 3? :-)

Hope this helps!

- Joe Bleau

----------------------------------------------------------------------------------------------------------------
